Application of Peristaltic Pumps in Peritoneal Dialysis Machines

2023-04-21 14:29:34

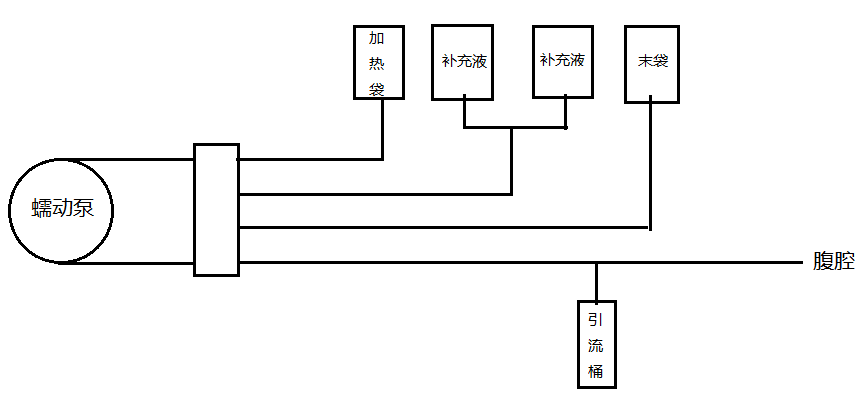

Peritoneal dialysis is a dialysis method that uses the body's own peritoneum as the dialysis membrane. Dialysate is infused into the abdominal cavity, and through the exchange of solutes and water between the blood in the peritoneal capillaries and the dialysate, metabolic wastes and excess water retained in the body are removed, while essential substances needed by the body are supplemented through the dialysate. By continuously renewing the dialysate, the purpose of renal replacement is achieved. A peritoneal dialysis machine is a device that automatically controls the circulation of the dialysate in and out of the abdominal cavity. During the dialysis process, it automatically controls the dialysate temperature, records dialysis data, and calculates ultrafiltration volume, reducing a significant amount of manual operation, which can significantly improve patients' quality of life and reduce the risk of infection.

The OEM peristaltic pump product (TS-A) has been widely applied in peritoneal dialysis machines.

- Enables sterile operation of dialysis equipment, using disposable tubing, which helps prevent cross-infection.

- ±2% high-precision flow transmission, meeting the dosage requirements for dialysate.

- Can be controlled via RS485 communication or analog signal, achieving a fully automated intelligent dialysis treatment solution for peritoneal dialysis machines.

- The flow of dialysate can meet the needs of different populations by changing the tubing size or adjusting the pump speed.

- Verified through extensive experiments and on-machine testing, ensuring stable and reliable performance.

- Customized peristaltic pump solutions can be provided according to customer requirements, allowing better integration with equipment, optimizing device performance, and improving dialysis efficiency to achieve the expected results.
